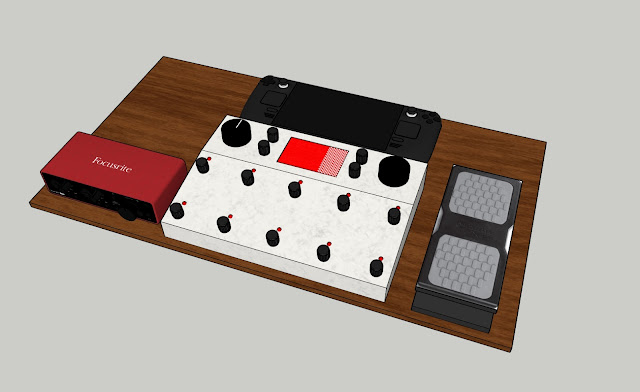

Nard Advance Midi Foot Controller - Making Midi Foot Controller with Arduino Pro Micro



What you'll need to make :

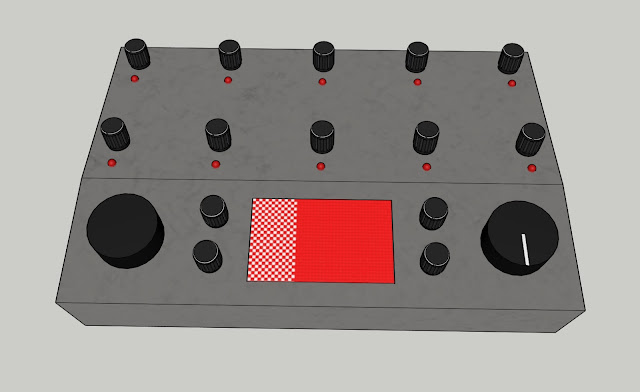

• Custom Stainless Steel Enclosure
• Arduino Pro Micro (Master)
• 2x Arduino Nano (Slave)
• 15x EC11 or KY-040 Rotary Encoder
• 30x Capacitor 0.1µF
• 1 b10k Potentiometer
• 3x Resistor 10kΩ
• 10 Resistor 220Ω
• 2x Shift register 74hc595
• 10 3mm/5mm LED
• 1x AMS1117-3.3V
• 1x  LCD ILI9488 320x480 (3.5")

Feature of Nard Advance Midi Foot Controller :

• 3 Mode :
• Play Mode
• 10 Bank
• 1 Bank = 10 Button (Preset/Pedal)
• Total you can assign 100 Preset/Pedal Button
• * I will turn off the potentiometer function on the Rotary Encoder in this Play Mode. To reduce accidents of changing parameters when stepping on the Switch Button
• Edit Mode : You can edit value / parameter your pedal, amp, plugin, etc
• Limitless Bank (I am not tested how many max bank, 100 maybe?)
• 1 Bank = 10 Button + 10 Pot Rotary Encoder.
• That ALOT OF THING you can assign Midi Parameter your pedal, amp, plugin, etc
• Rename Mode : Change name your preset / pedal / amp that show on your Display
• 2 Input Expression Pedal
• Large 3.5 inch Display Screen to see what you are doing
• Open Source Code. You can change and improve the coding.
• *I will update the github link after finishing the coding
